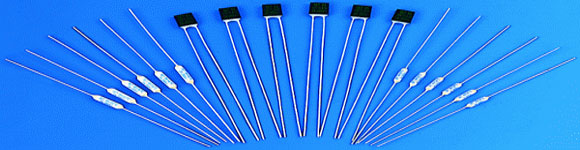

THERMAL CUTOFFS   Price List
	F Series (UL & VDE certified)   ←  Click for Info.
	Type No.	F 2	F 3	F 4	F 8	Type No.
	T F (Function Temp.)	239 °F 115 °C	257 °F 125 °C	266 °F 130 °C	271.4 °F 133 °C	T F (Function Temp.)
	T H (Holding Temp.)	195.8 °F 91 °C	212 °F 100 °C	222.8 °F 106 °C	231.8 °F 111 °C	T H (Holding Temp.)
	T M (Max Temp.)	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	T M (Max Temp.)
	I r (Rated Current)	1 A	1 A	1 A	1 A	I r (Rated Current)
	U r (Rated Volt)	250 V(AC)	250 V(AC)	250 V(AC)	250 V(AC)	U r (Rated Volt)
	Quantity	100 PCS	100 PCS	100 PCS	100 PCS	Quantity
	Price as low as…	$ 7.60	$ 7.60	$ 7.60	$ 7.60	Price as low as…
	X Series (UL & VDE certified)   ←  Click for Info.
	Type No.	X 4	X 7	X 8	X 9	Type No.
	T F (Function Temp.)	266 °F 130 °C	302 °F 150 °C	271.4 °F 133 °C	276.8 °F 136 °C	T F (Function Temp.)
	T H (Holding Temp.)	222.8 °F 106 °C	258.8 °F 126 °C	231.8 °F 111 °C	233.6 °F 112 °C	T H (Holding Temp.)
	T M (Max Temp.)	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	T M (Max Temp.)
	I r (Rated Current)	3 A	3 A	3 A	3 A	I r (Rated Current)
	U r (Rated Volt)	250 V(AC)	250 V(AC)	250 V(AC)	250 V(AC)	U r (Rated Volt)
	Quantity	100 PCS	100 PCS	100 PCS	100 PCS	Quantity
	Price as low as…	$ 10.00	$ 10.00	$ 10.00	$ 10.00	Price as low as…
	Y Series (UL & VDE certified)   ←  Click for Info.
	Type No.	Y 4	Y 7	Y 8	Y 9	Type No.
	T F (Function Temp.)	266 °F 130 °C	302 °F 150 °C	271.4 °F 133 °C	276.8 °F 136 °C	T F (Function Temp.)
	T H (Holding Temp.)	217.4 °F 103 °C	253.4 °F 123 °C	226.4 °F 108 °C	231.8 °F 111 °C	T H (Holding Temp.)
	T M (Max Temp.)	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	392 °F 200 °C	T M (Max Temp.)
	I r (Rated Current)	5 A	5 A	5 A	5 A	I r (Rated Current)
	U r (Rated Volt)	250 V(AC)	250 V(AC)	250 V(AC)	250 V(AC)	U r (Rated Volt)
	Quantity	100 PCS	100 PCS	100 PCS	100 PCS	Quantity
	Price as low as…	$ 20.00	$ 20.00	$ 20.00	$ 20.00	Price as low as…
